PRODUCT INDEX / 2026

Every Part ofthe Run

Trays, fittings, supports, earthing and instrumentation — drawn to your widths, gauges and finishes. Open any item for its full specification.

20
CATALOGUE ITEMS
04
PRODUCT FAMILIES
1000
MAX TRAY WIDTH
7
MATERIAL FINISHES
BROWSE
WIDTHS 50 – 1000 mmTHICKNESS 1.0 – 2.5 mmHOT-DIP GALVANIZED TO IS 2629IEC 61537 LOAD CLASSESSS 304 / 316 ON REQUESTMANIFOLDS TO 414 bar105 PUBLISHED SPECIFICATIONSMADE TO DRAWING
WIDTHS 50 – 1000 mmTHICKNESS 1.0 – 2.5 mmHOT-DIP GALVANIZED TO IS 2629IEC 61537 LOAD CLASSESSS 304 / 316 ON REQUESTMANIFOLDS TO 414 bar105 PUBLISHED SPECIFICATIONSMADE TO DRAWING
20 OF 20 ITEMS SHOWN
SPECIFICATIONS ON REQUEST

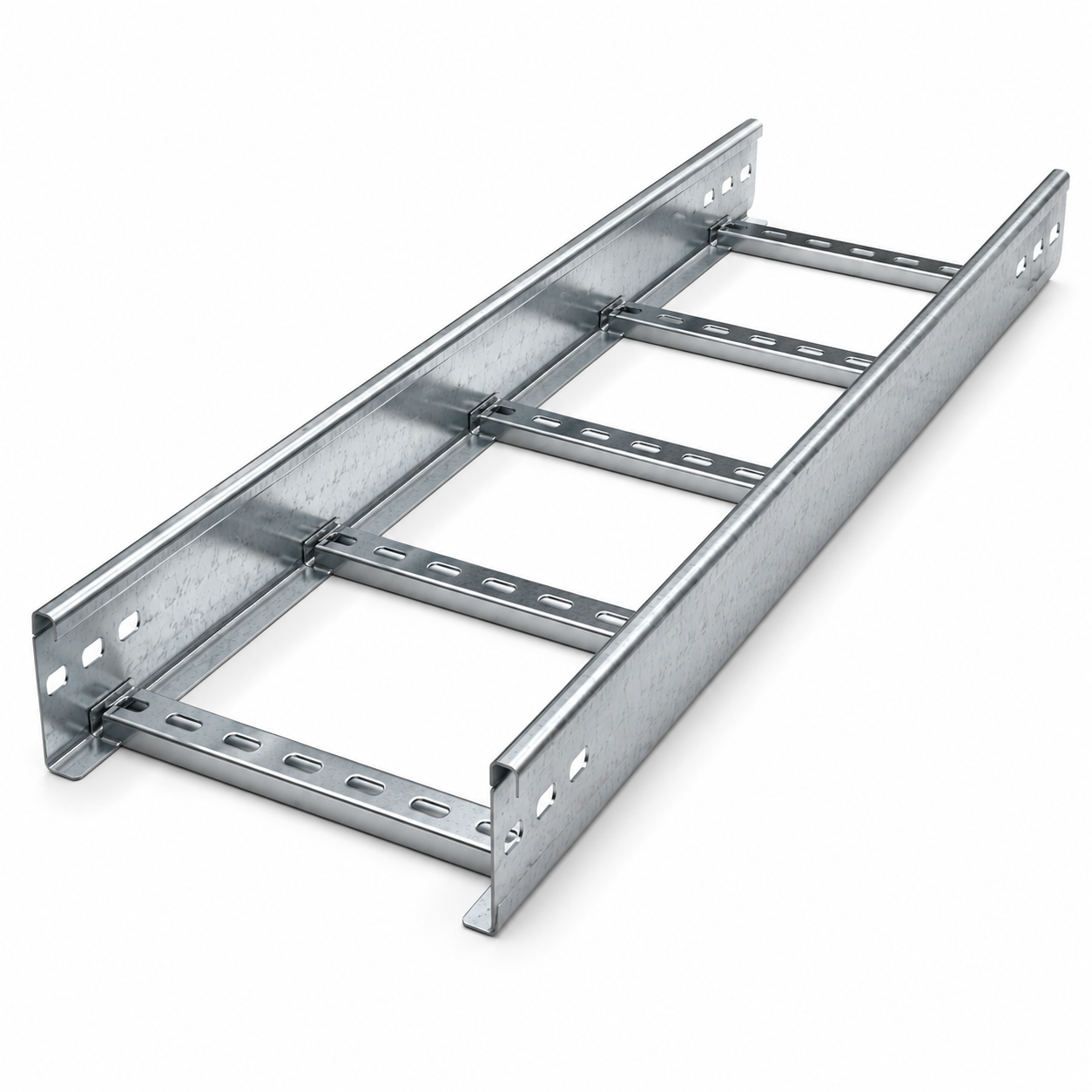

Ladder Type Cable Tray
PI-CT-LD
CABLE TRAY

Ladder Type Cable Tray

Rung-and-rail tray for heavy power runs where ventilation and cable dressing matter most.

WIDTHS50 – 1000 mm
RAIL HEIGHT25 / 40 / 50 / 75 / 100 mm

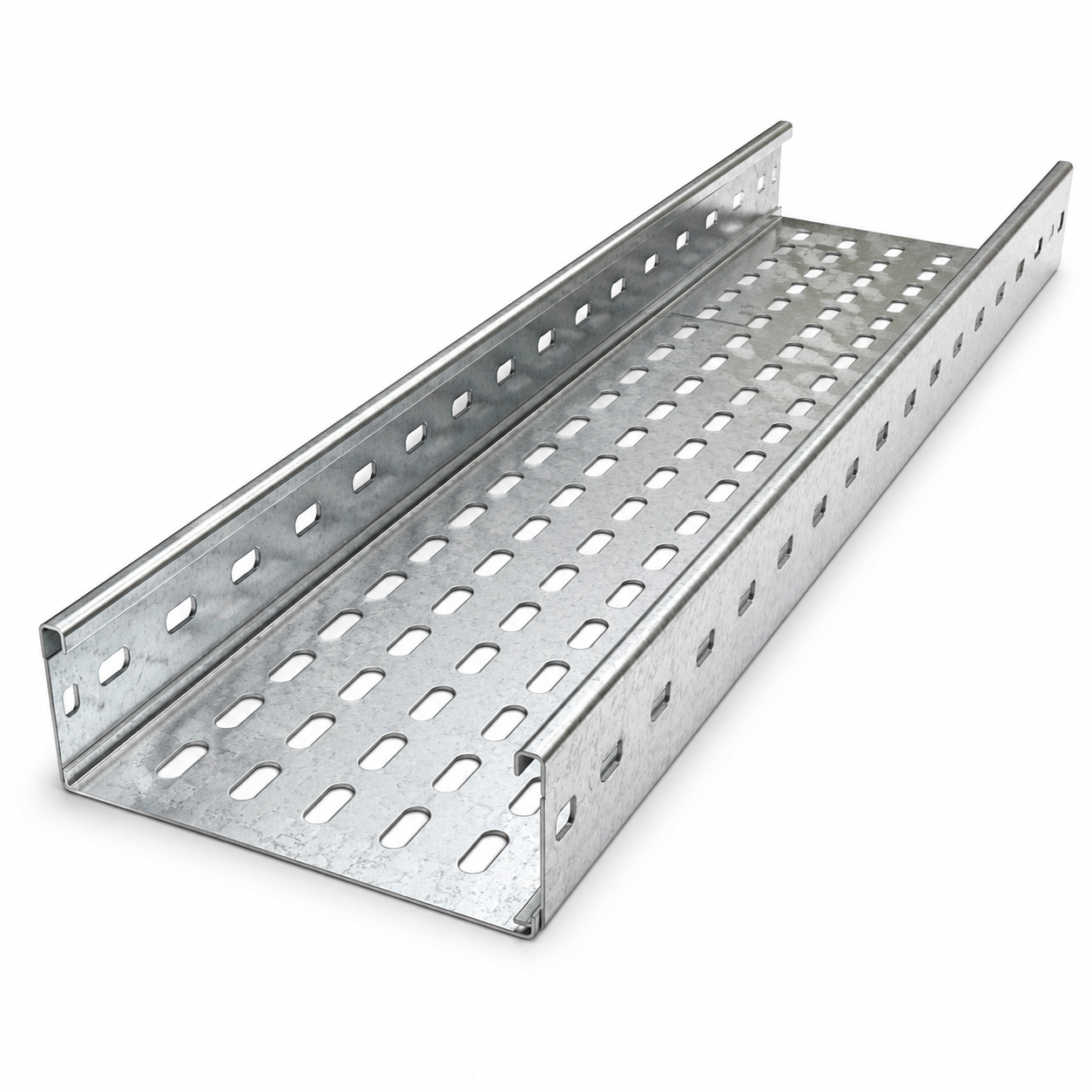

Perforated Type Cable Tray
PI-CT-PF
CABLE TRAY

Perforated Type Cable Tray

Slotted base tray for control and instrument cabling with continuous support.

WIDTHS50 – 900 mm
HEIGHT25 / 40 / 50 / 75 mm

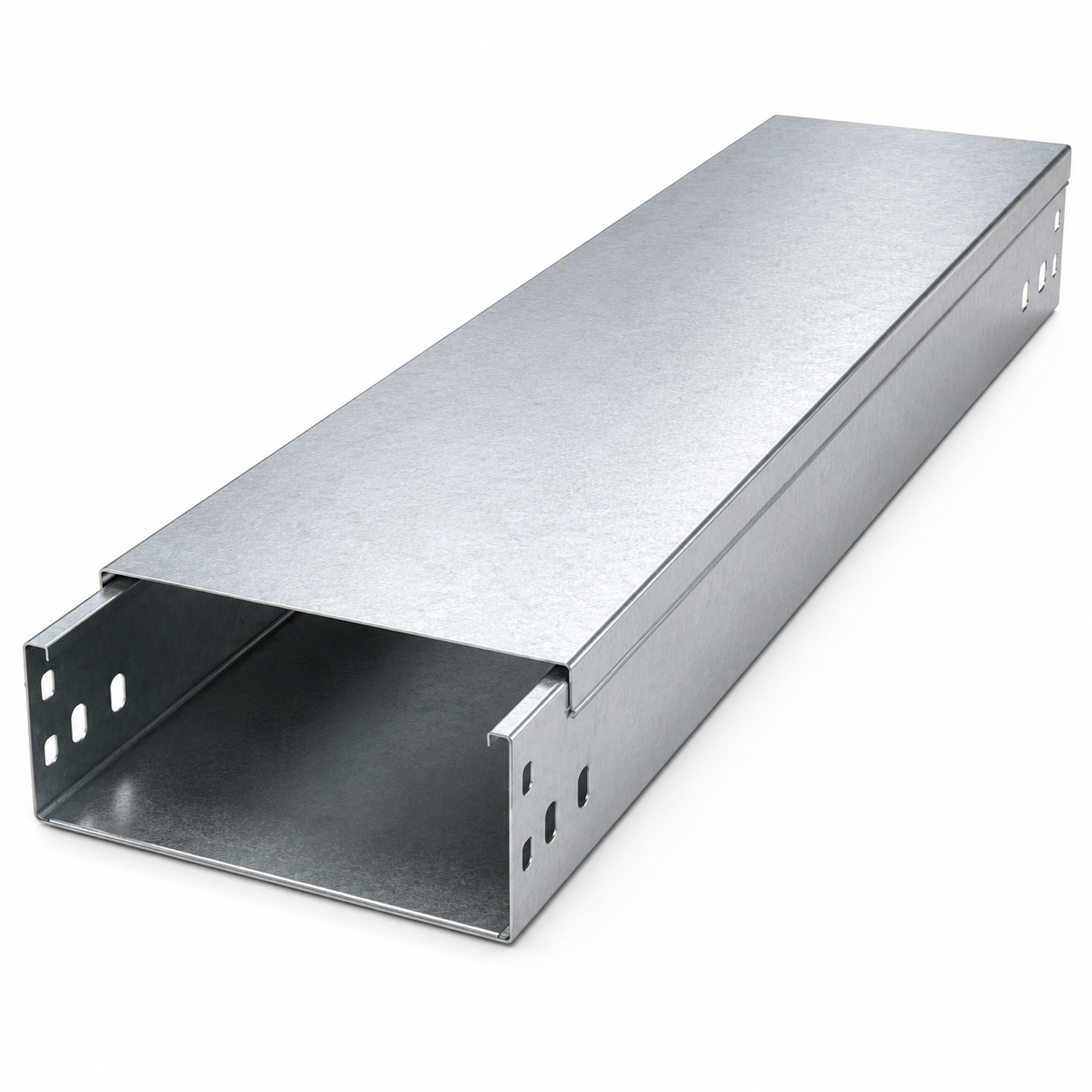

Raceway Type Cable Tray
PI-CT-RW
CABLE TRAY

Raceway Type Cable Tray

Fully enclosed trunking for clean, protected routing in exposed areas.

WIDTHS50 – 600 mm
HEIGHT50 / 75 / 100 mm

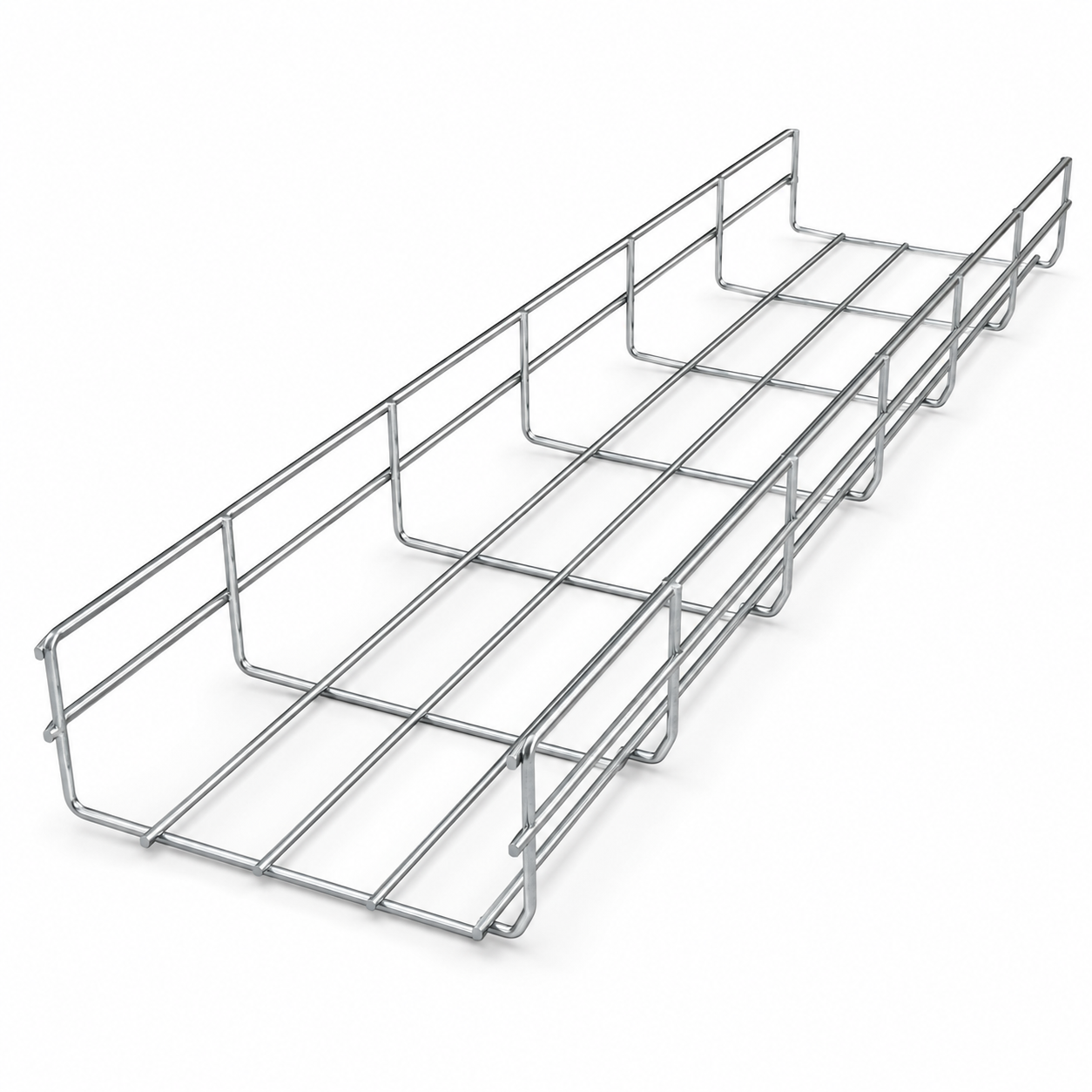

Wire Mesh Type Cable Tray
PI-CT-WM
CABLE TRAY

Wire Mesh Type Cable Tray

Welded wire basket for data and light power — fast to cut, bend and route on site.

WIDTHS50 – 600 mm
HEIGHT30 / 50 / 100 mm

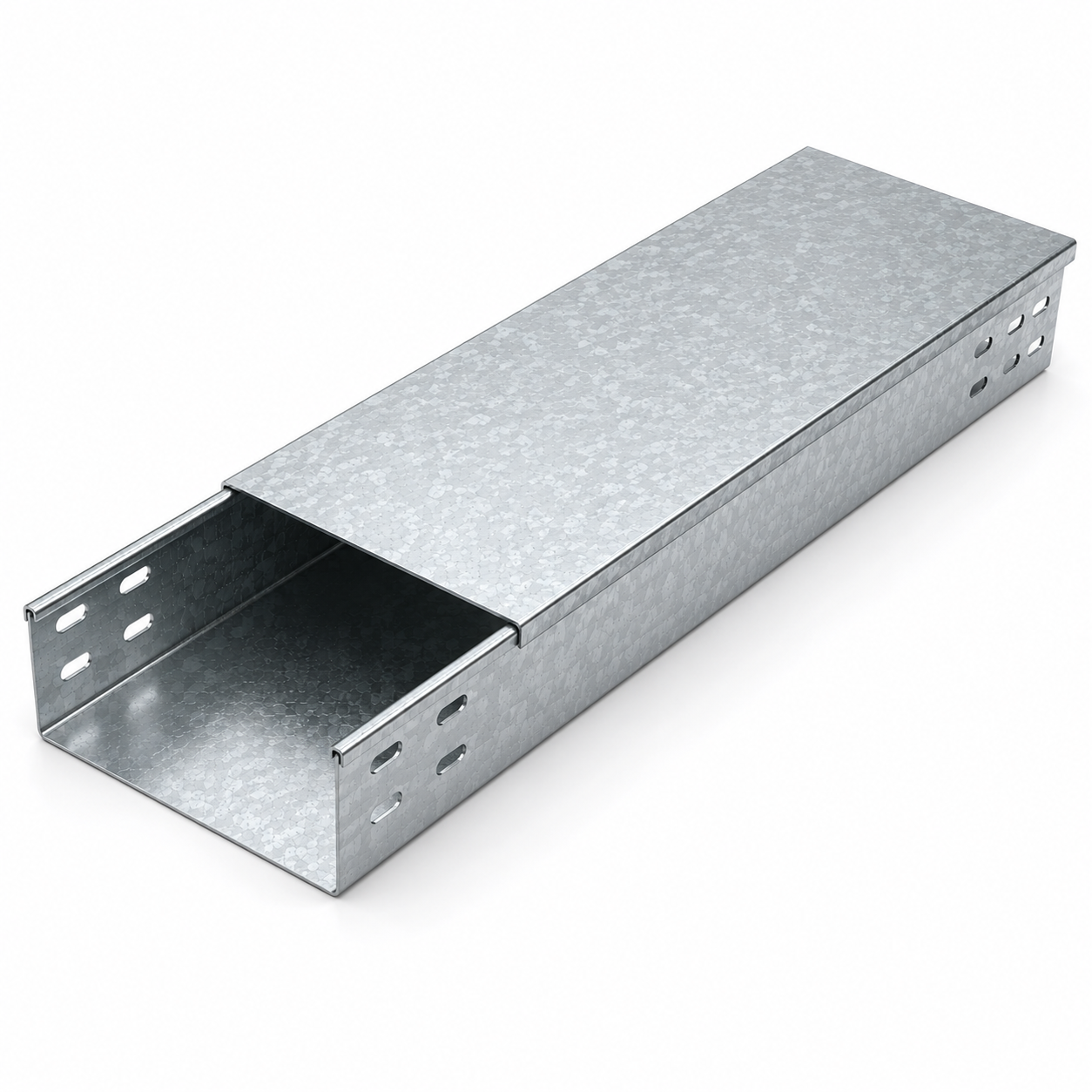

Tray Cover & Raceway Lid
PI-CT-CV
CABLE TRAY

Tray Cover & Raceway Lid

Peaked or flat covers that shed water and keep dust off open tray runs.

WIDTHSMatched to tray, 50 – 1000 mm
PROFILEFlat / Peaked

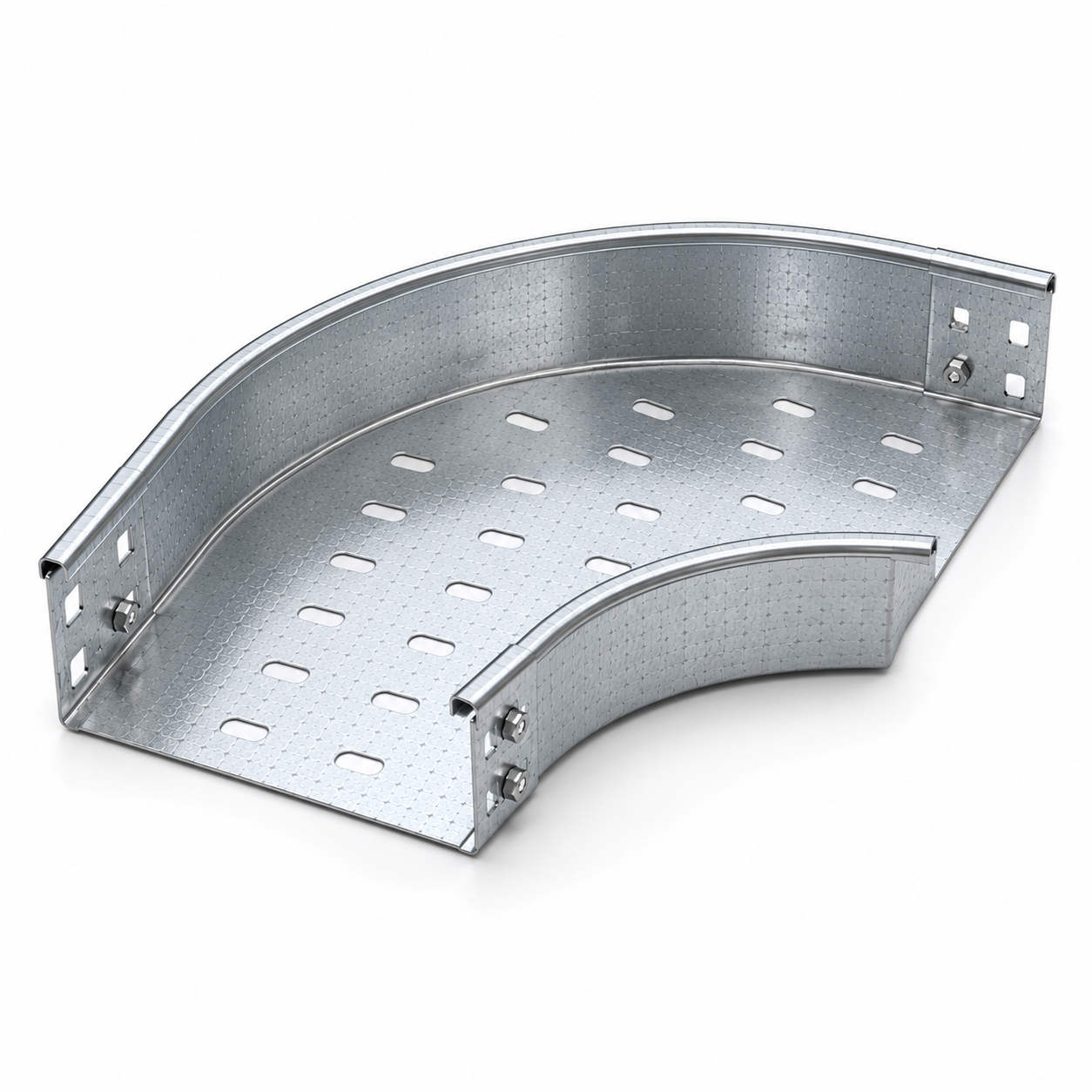

Horizontal Bend
PI-FT-HB
FITTINGS

Horizontal Bend

Factory-formed 45° and 90° bends that keep the cable bending radius safe.

ANGLES30° / 45° / 60° / 90°
WIDTHS50 – 1000 mm
Inner & Outer Riser Bends
PI-FT-RB
FITTINGS

Inner & Outer Riser Bends

Vertical inside and outside risers for level changes along a run.

TYPEInner riser / Outer riser
ANGLES45° / 90°

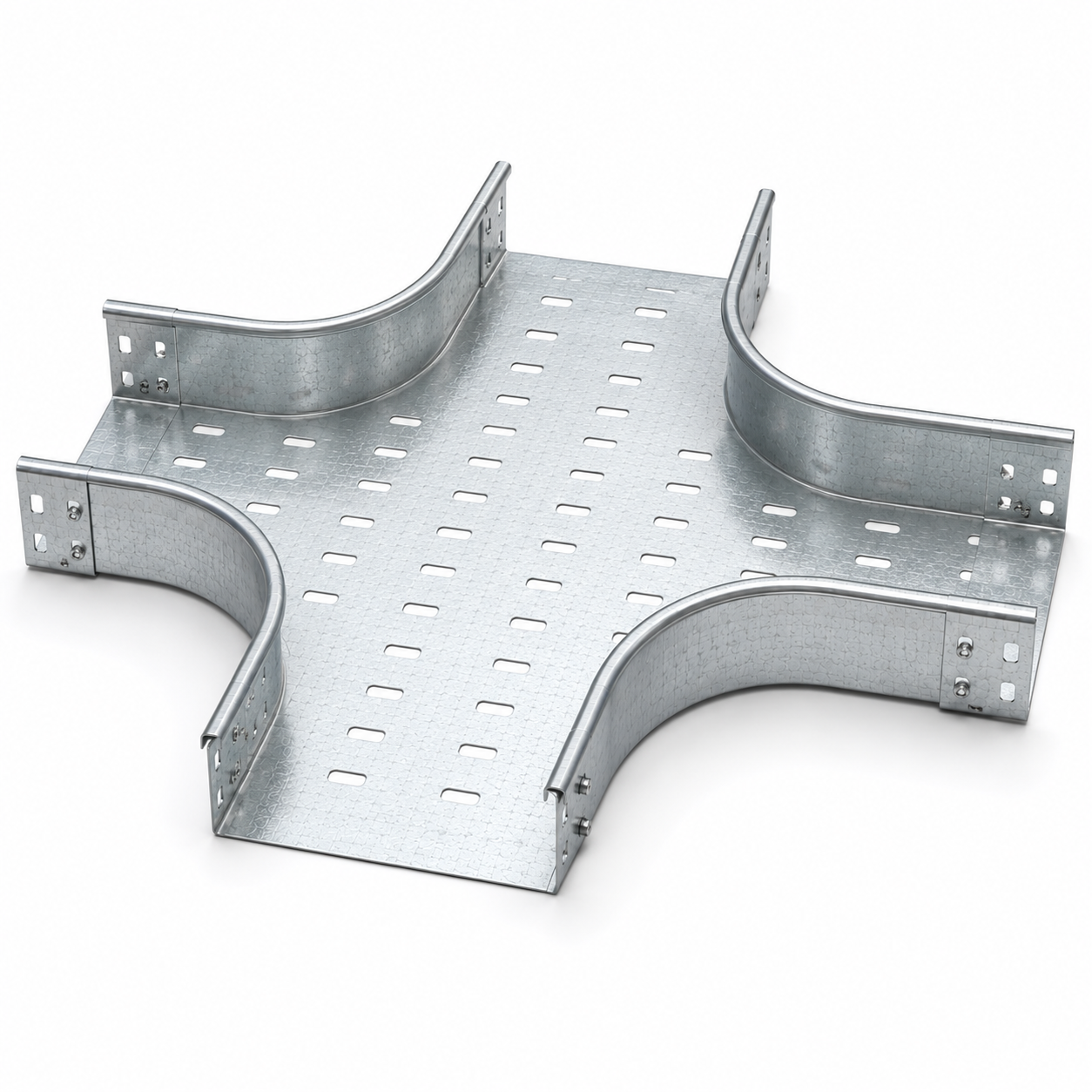

Horizontal Cross
PI-FT-CR
FITTINGS

Horizontal Cross

Four-way junction for distributing a main run into two branches.

WAYS4-way, 90° branches
MAIN WIDTH100 – 1000 mm

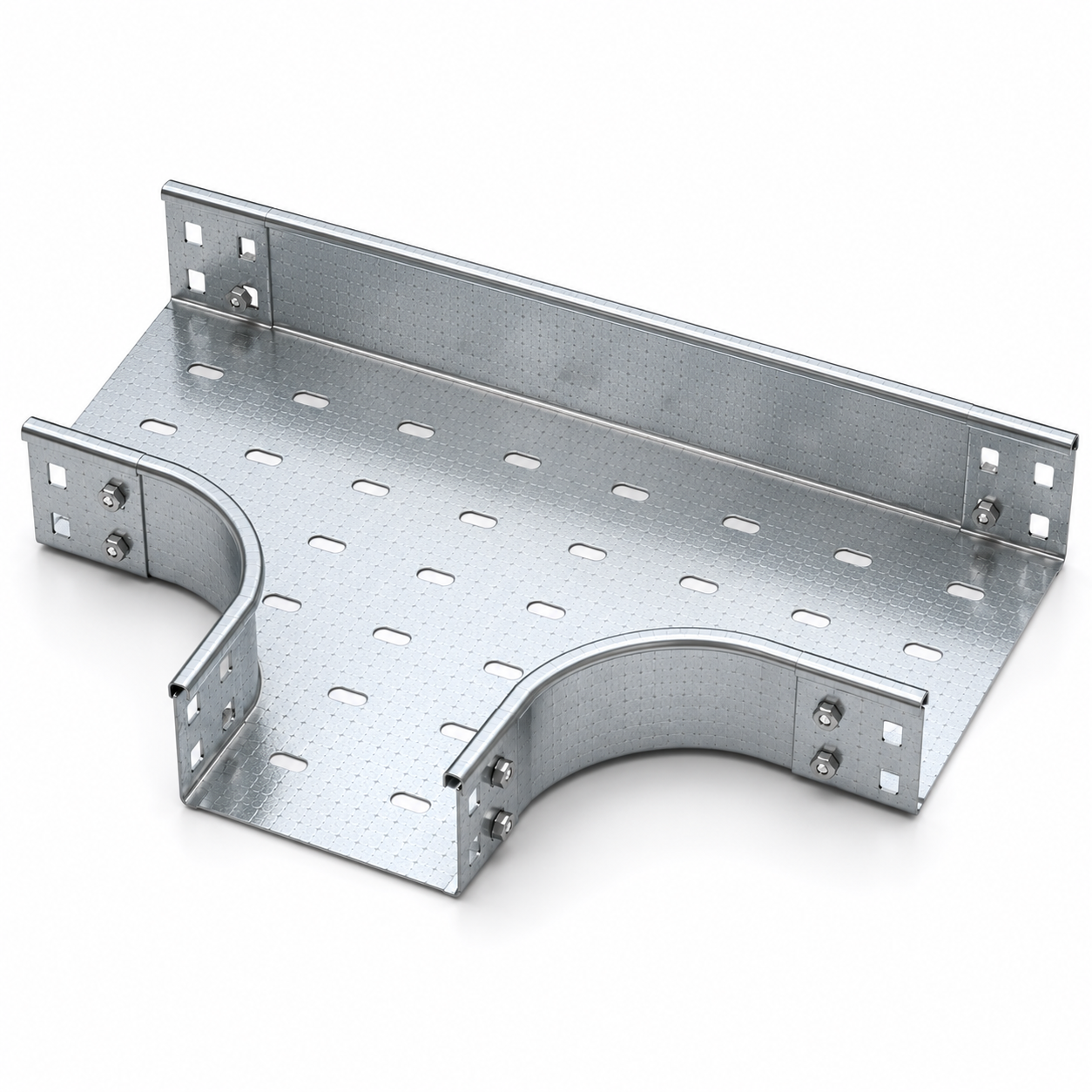

Equal & Unequal Tee
PI-FT-TE
FITTINGS

Equal & Unequal Tee

Three-way branch fitting in equal or reduced branch widths.

WAYS3-way, 90° branch
MAIN WIDTH50 – 1000 mm

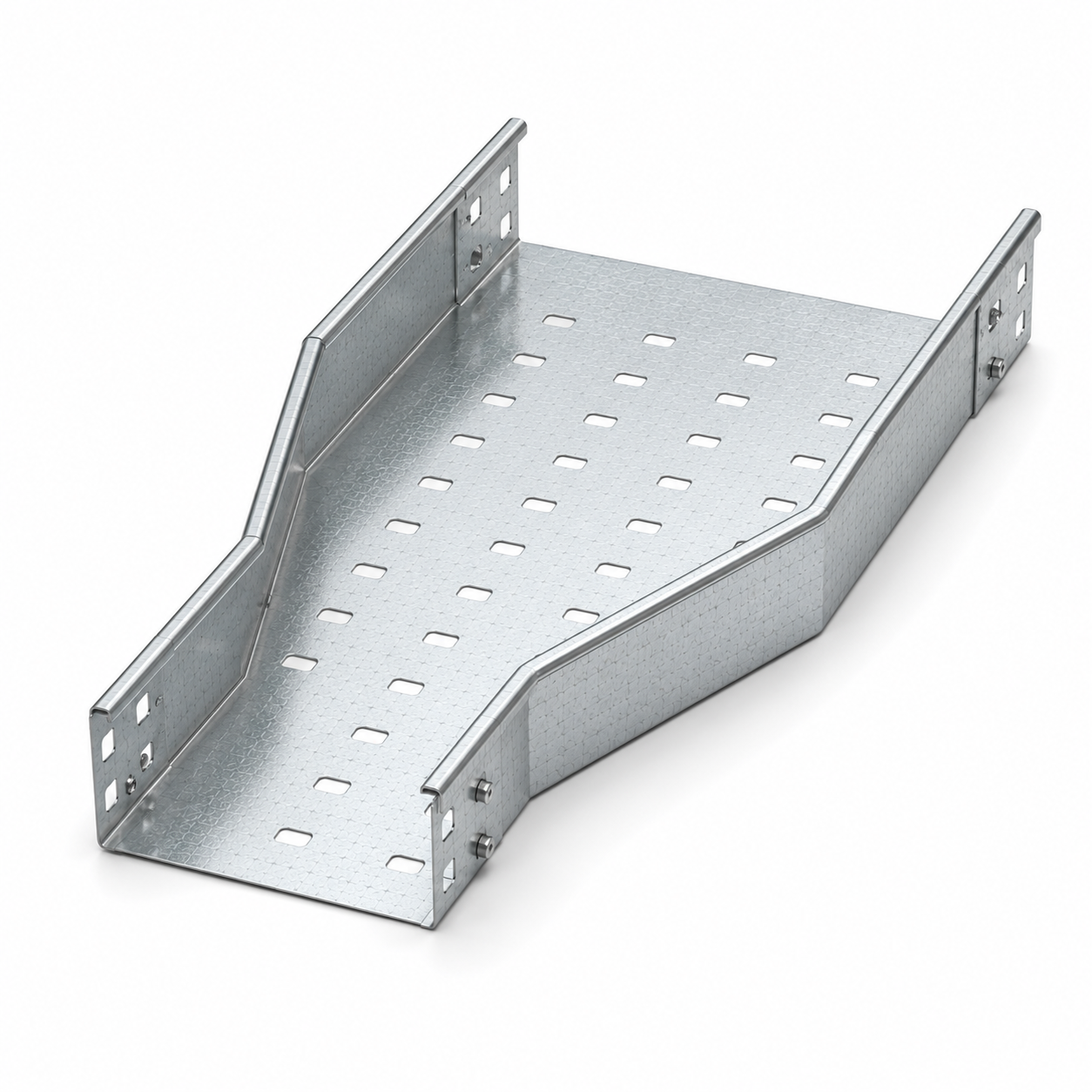

Reducer — Centre
PI-FT-RD
FITTINGS

Reducer — Centre

Symmetrical transition between two tray widths on a straight run.

TYPECentre reducer
FROM WIDTH100 – 1000 mm

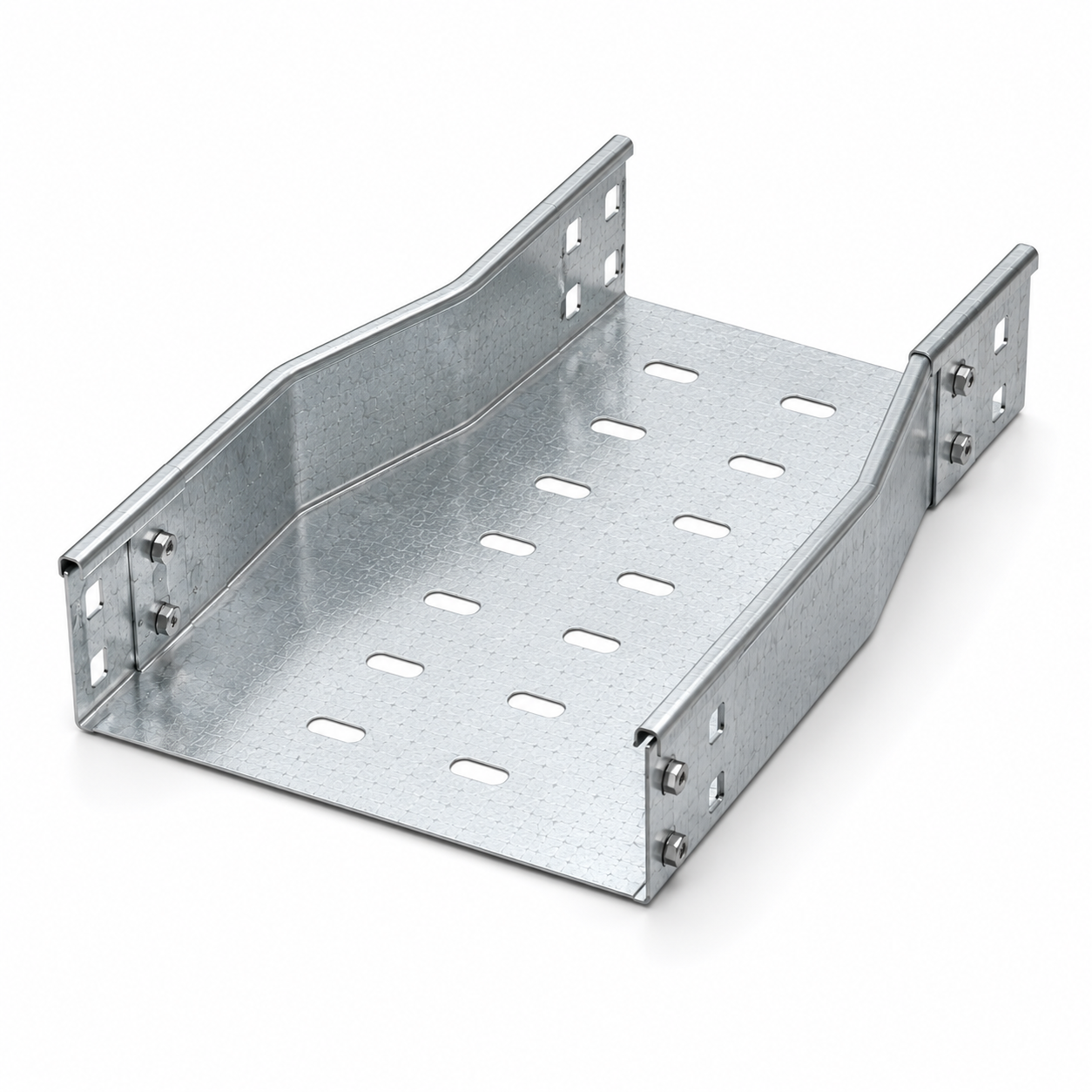

Reducer Set — Left & Right
PI-FT-RS
FITTINGS

Reducer Set — Left & Right

Offset reducers that keep one rail in line while the width steps down.

TYPELeft-hand / Right-hand
FROM WIDTH100 – 1000 mm

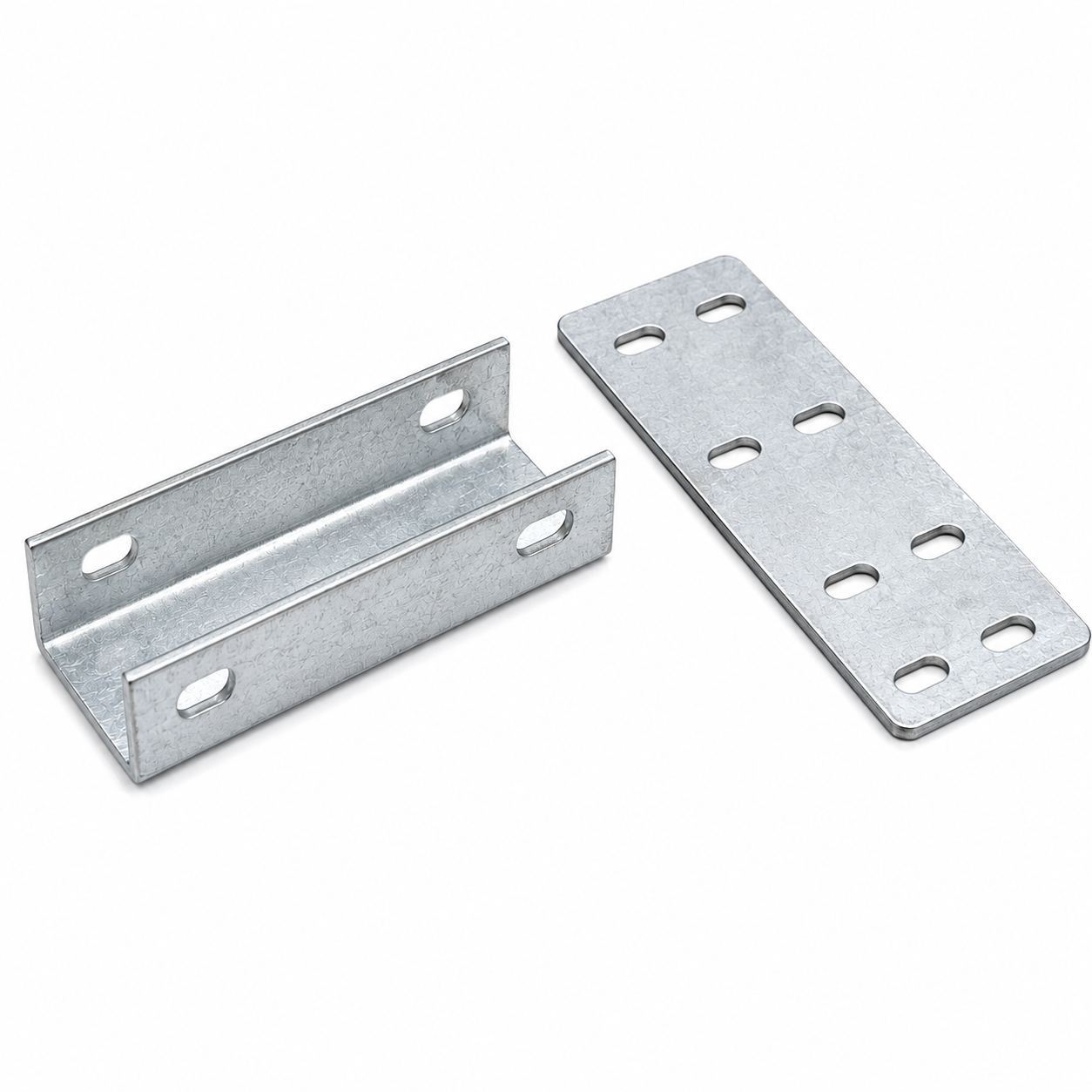

Coupler & Splice Plate
PI-CP-SP
SUPPORTS

Coupler & Splice Plate

Joint plates that keep runs mechanically and electrically continuous.

TYPESStraight / Expansion / Adjustable
THICKNESS2.0 – 3.0 mm

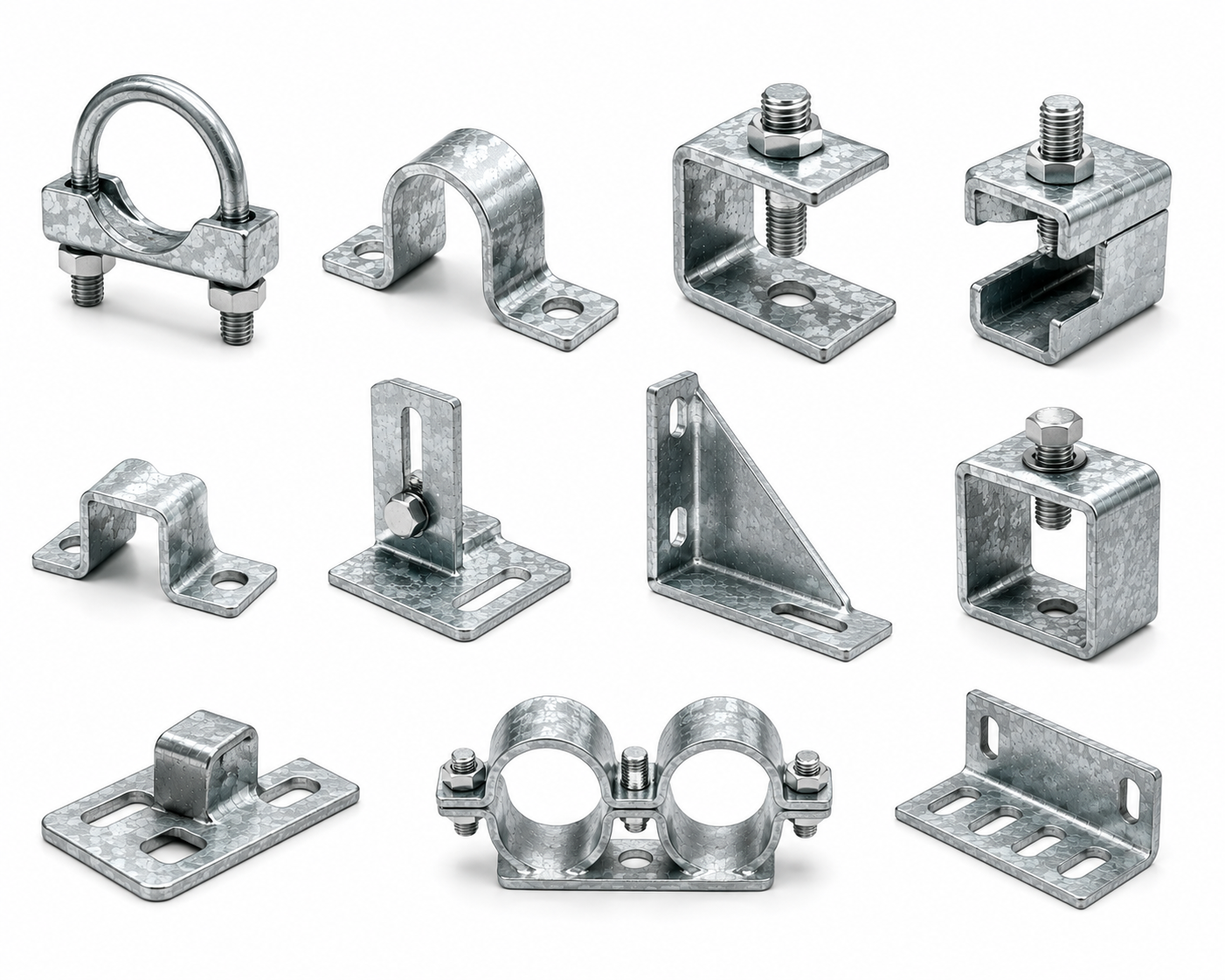

Clamps & Hold-Down Brackets
PI-CP-CL
SUPPORTS

Clamps & Hold-Down Brackets

Hold-down clamps that fix tray to support steel without site drilling.

TYPESHold-down / Slide / Beam clamp
THICKNESS2.0 – 4.0 mm

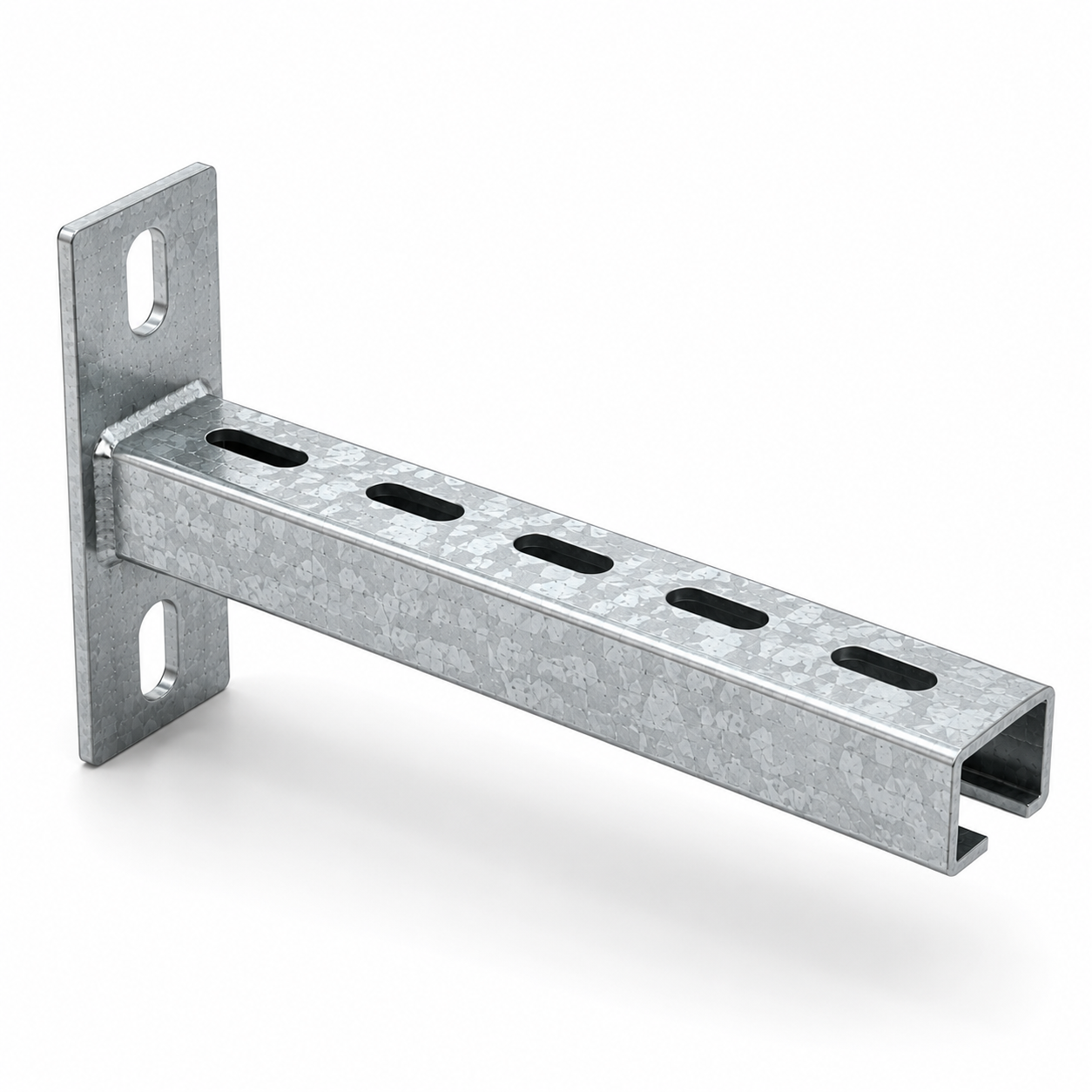

Wall Support Bracket
PI-CP-WB
SUPPORTS

Wall Support Bracket

Cantilever wall brackets in matched lengths for every tray width.

ARM LENGTHS100 – 750 mm
THICKNESS2.0 – 4.0 mm

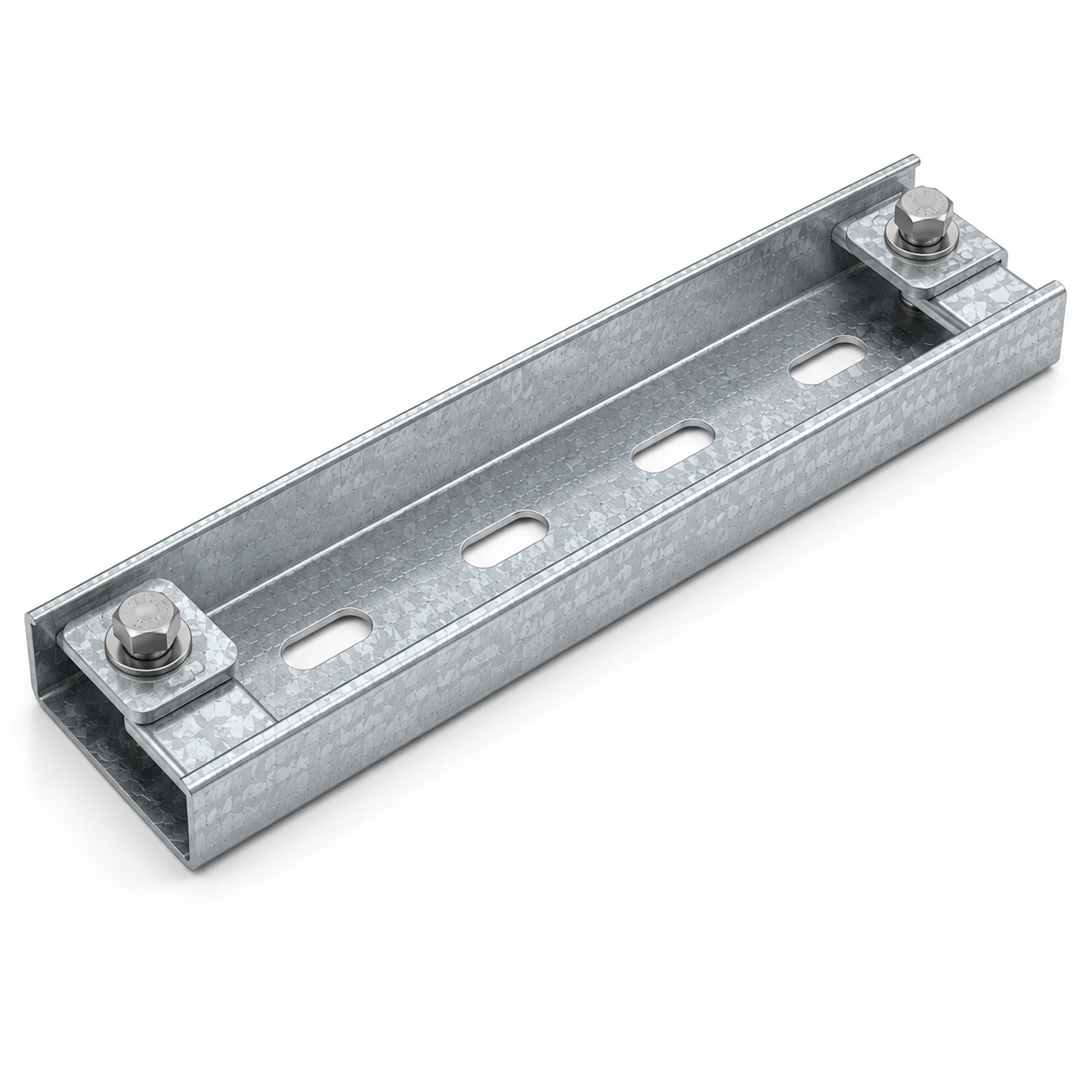

Cantilever & Channel Bracket
PI-CP-CB
SUPPORTS

Cantilever & Channel Bracket

Channel-mounted arms for multi-tier tray stacks on a single upright.

ARM LENGTHS150 – 600 mm
CHANNEL SIZES41 × 41 / 41 × 21 mm

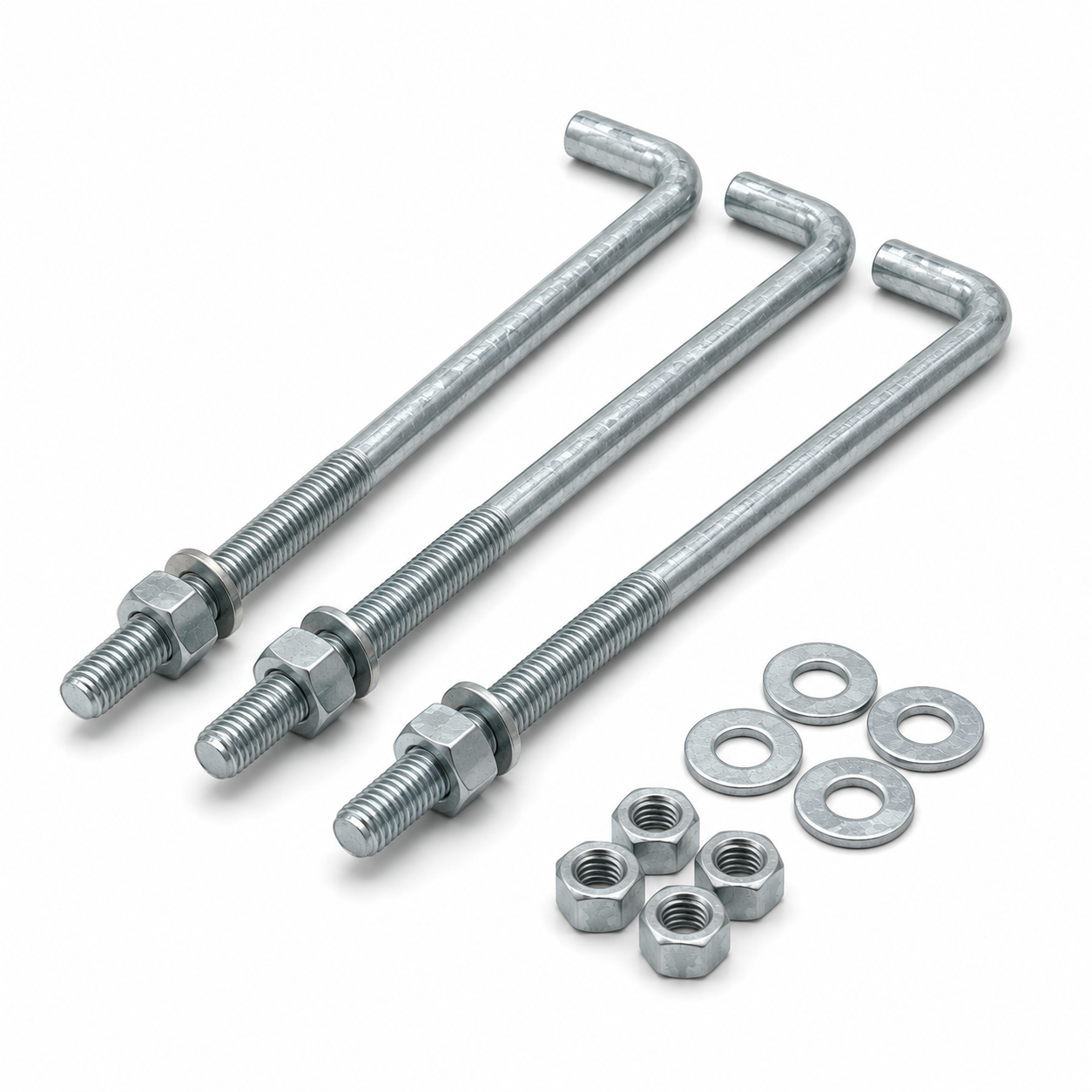

Foundation Bolts & Fasteners
PI-CP-FB
SUPPORTS

Foundation Bolts & Fasteners

J, L and anchor bolts with nuts, washers and templates.

TYPESJ bolt / L bolt / Anchor
DIAMETERSM10 – M36

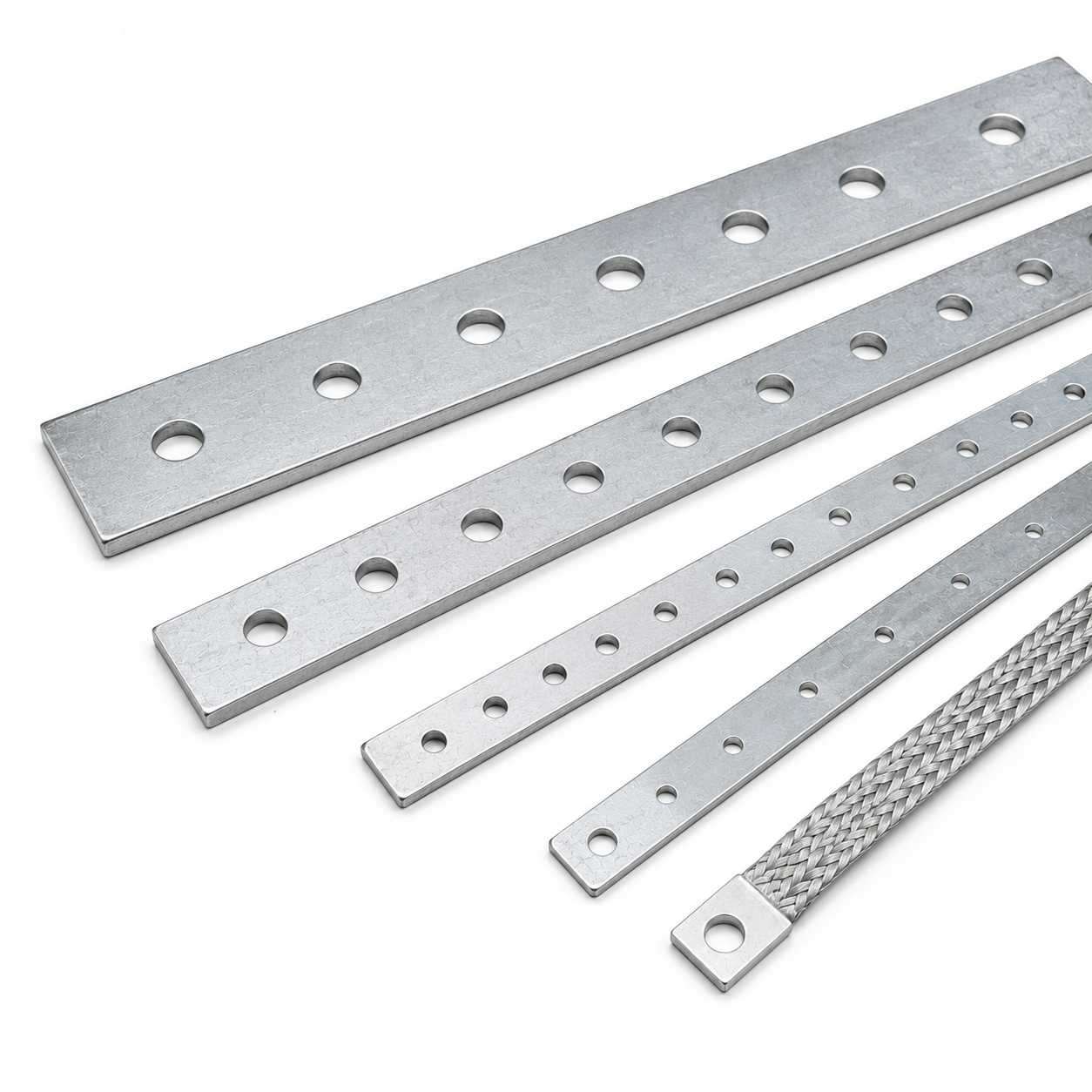

Earthing Strips & Flats
PI-EA-ST
EARTHING / INST.

Earthing Strips & Flats

Copper and GI earth flats cut, drilled and bent to your earthing layout.

SECTIONS25 × 3 up to 75 × 12 mm
MATERIALSCopper / GI / Aluminium

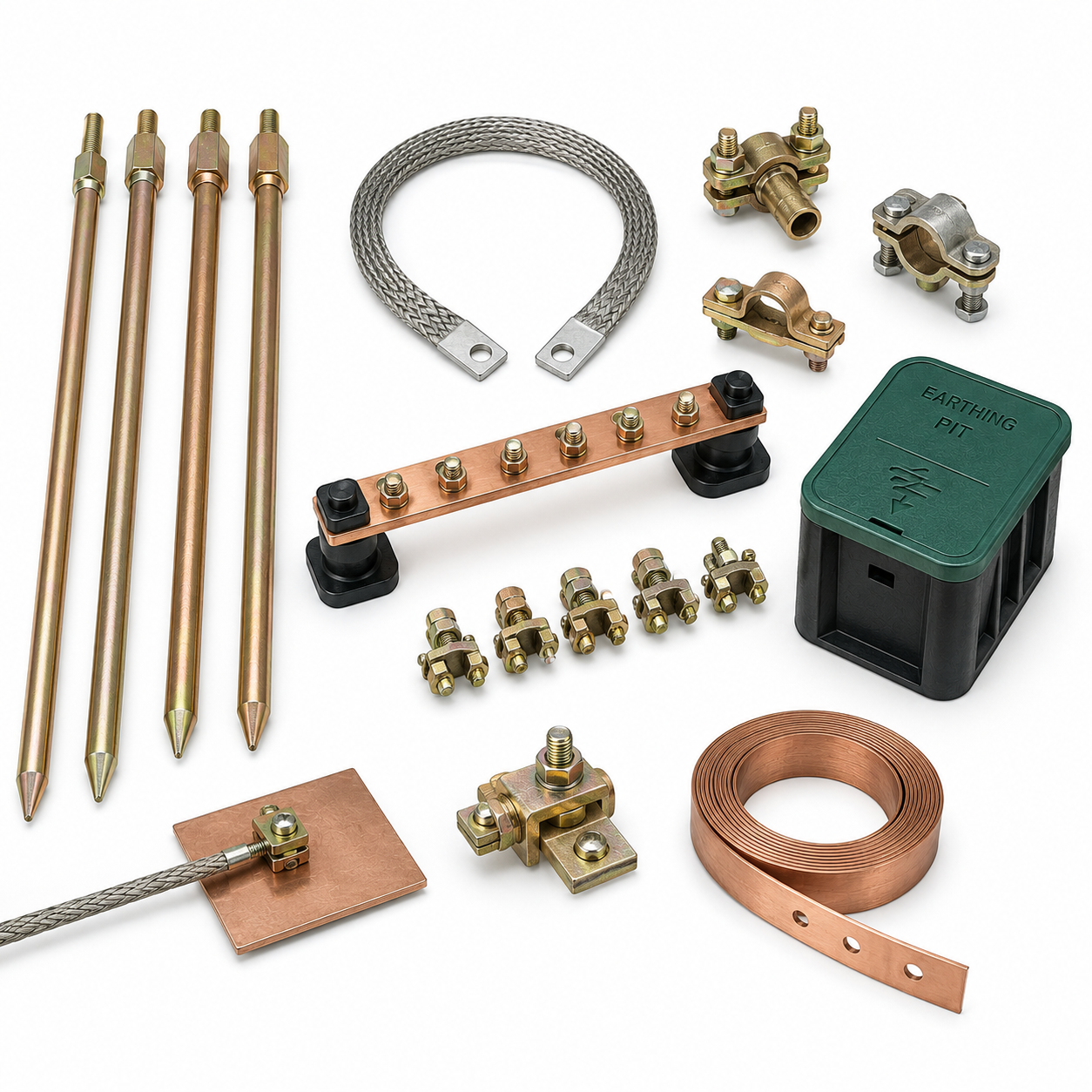

Earthing Electrodes & Plates
PI-EA-EL
EARTHING / INST.

Earthing Electrodes & Plates

Pipe, rod and plate electrodes with backfill and inspection chambers.

ELECTRODE TYPESPipe / Rod / Plate
ROD DIAMETER17.2 / 20 / 25 mm

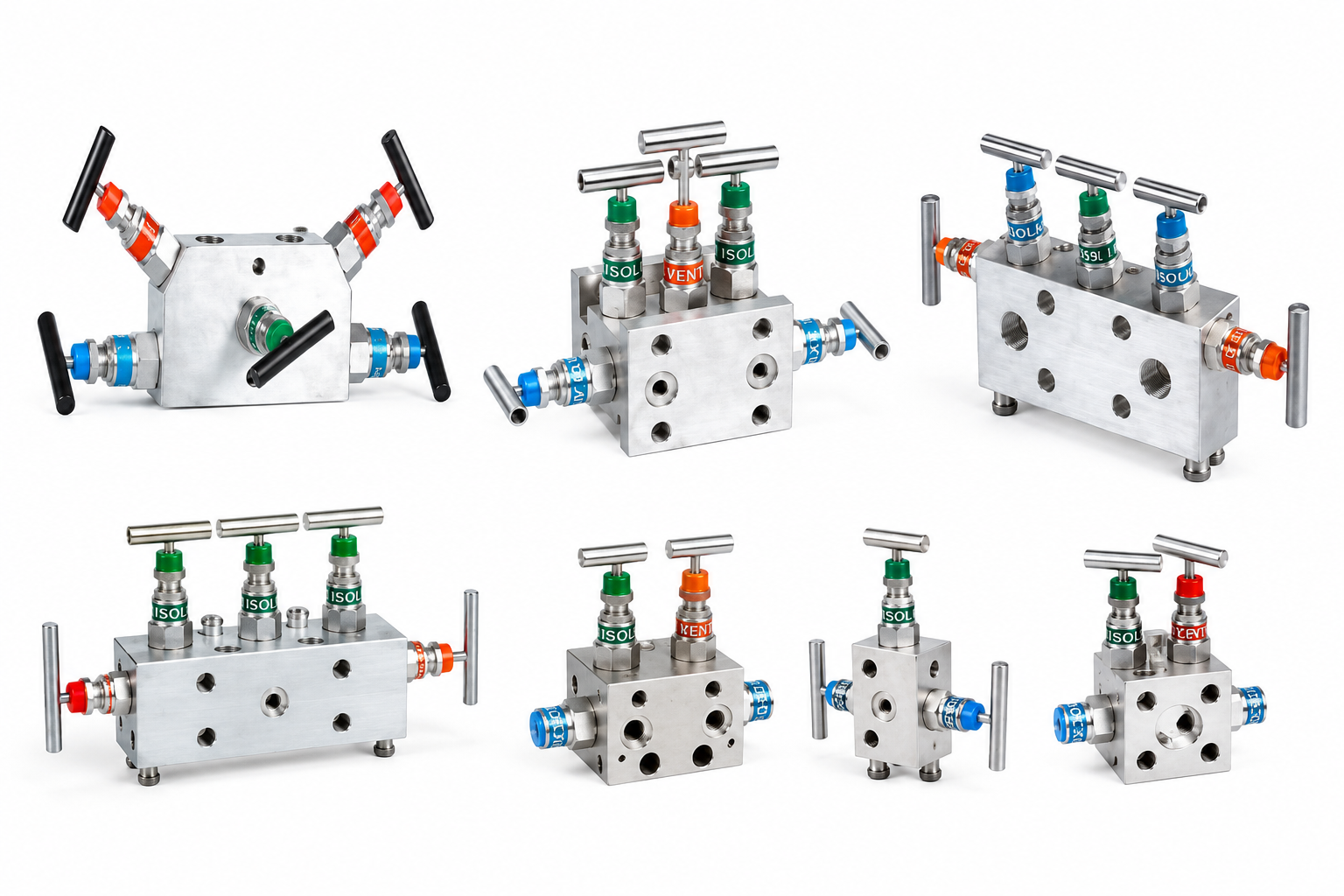

Instrumentation Manifolds
PI-IN-MF
EARTHING / INST.

Instrumentation Manifolds

2, 3 and 5 valve manifolds for pressure and DP transmitter hook-ups.

CONFIGURATIONS2 / 3 / 5 valve
PATTERNSDirect, remote, pipe mount

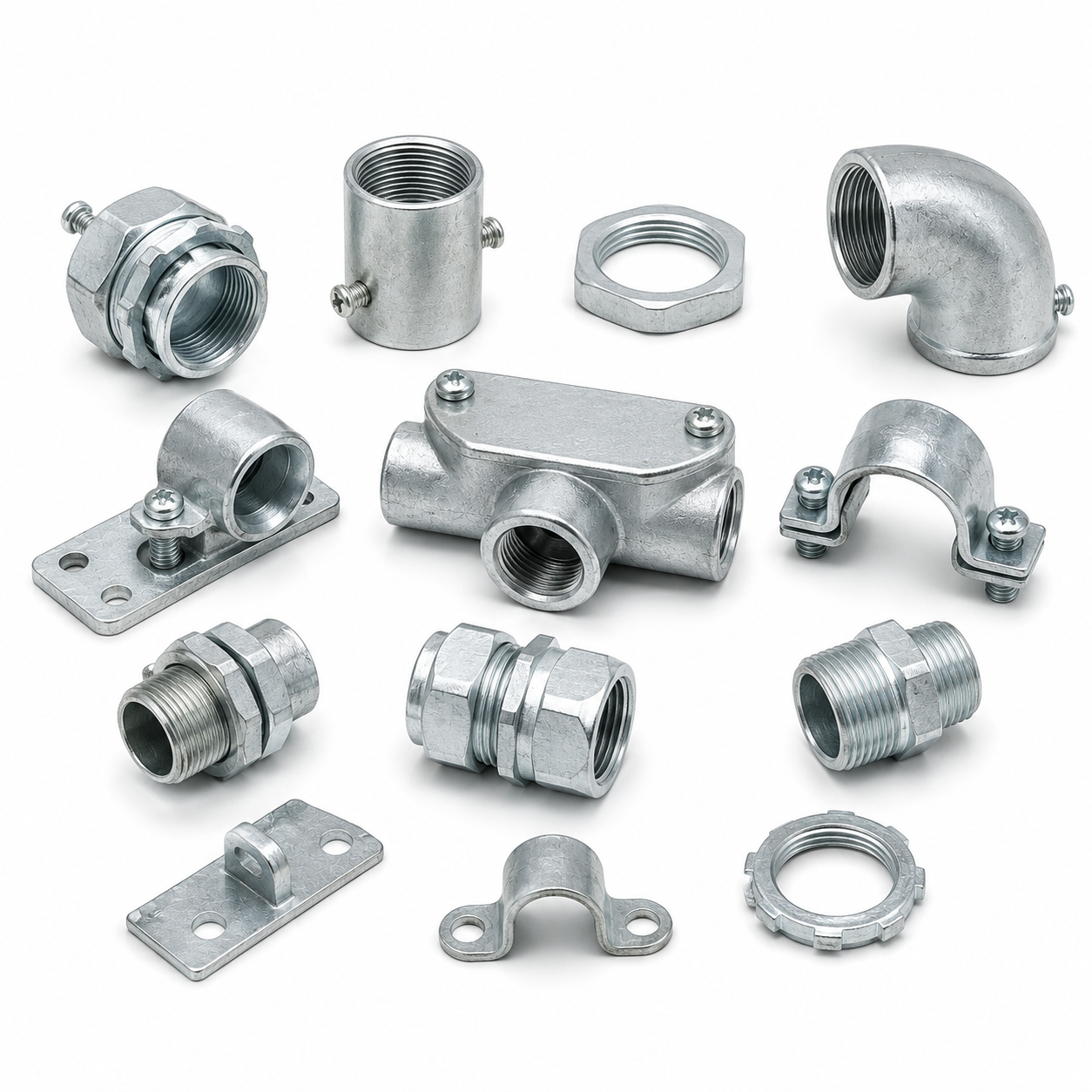

Instrumentation Fittings
PI-IN-FT
EARTHING / INST.

Instrumentation Fittings

Tube fittings, glands, bushings and unions for instrument lines.

FITTING TYPESUnion, elbow, tee, adapter
TUBE SIZES1/8" – 1" / 3 – 25 mm
MADE TO DRAWING

Send us the section.
We will hold the tolerance.

Non-standard widths, special rung pitches, custom bends and finishes — fabrication, galvanizing and inspection all happen in our own 15,000 sq. ft. facility at Khed Shivapur.
